Mattress Foam Density Chart: Density vs. Firmness Explained

Foam density is mass per unit volume. It is useful because, within a comparable flexible polyurethane foam family, greater polymer density can help a foam retain its original properties. But density is not firmness, not a comfort score, and not a promise that a mattress will last a fixed number of years.

The practical buying rule is: ask for the foam type, layer thickness, density and units, firmness test, support data, and warranty—then compare like with like. Reject exact lifespan tables that turn one density number into “three years” or “ten years.” The engineering does not support that level of certainty for a complete mattress.

How this guide was researched

The technical foundation comes from the Polyurethane Foam Association's foam-performance guidance, its density and compression-modulus bulletins, ASTM D3574 test-method scope, and current CertiPUR-US technical guidance.

We did not cut laboratory specimens from branded mattresses, run fatigue cycles, measure compression set, or verify proprietary formulations. This article explains how to interpret supplied specifications; it does not assign unreported numbers to brands.

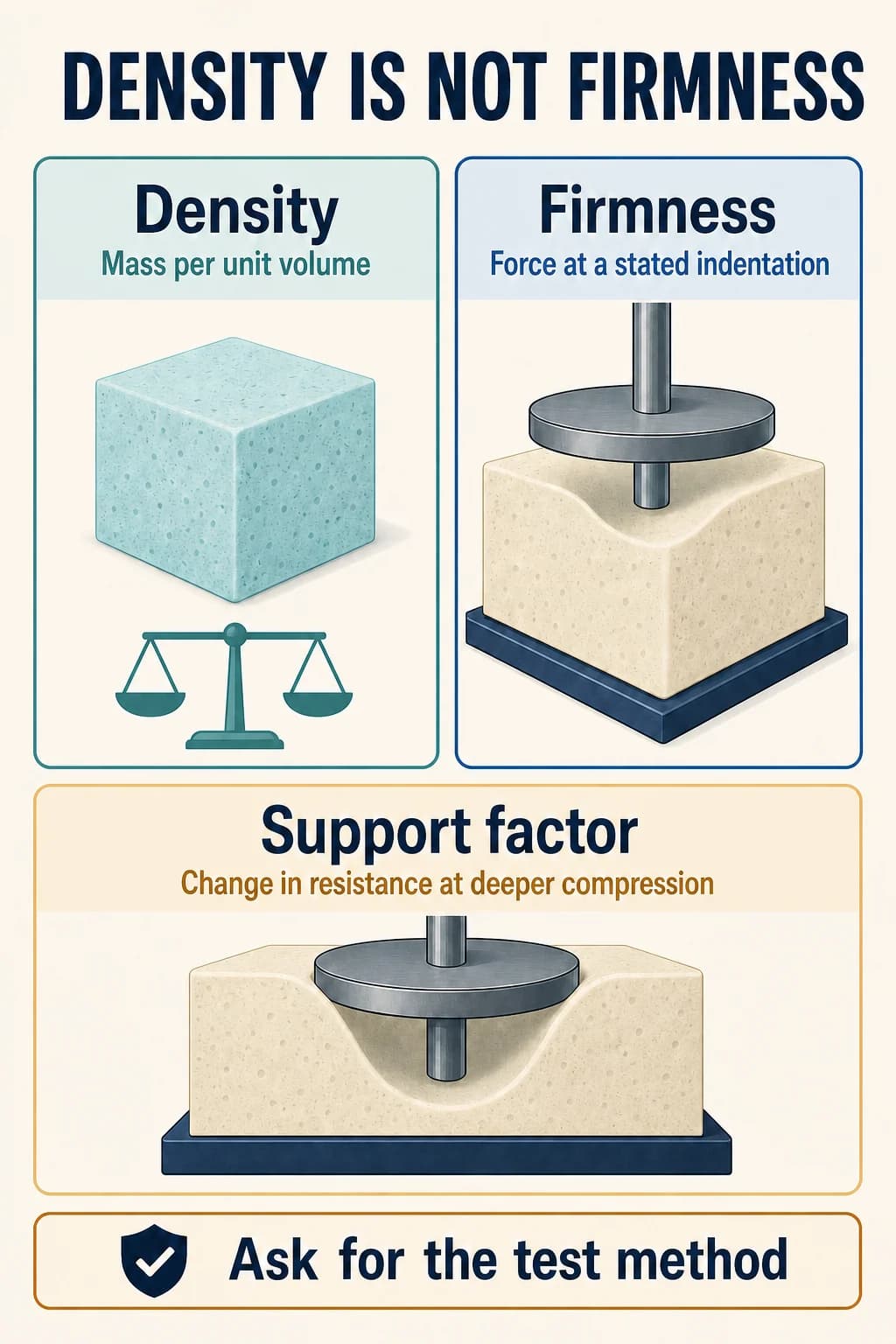

Density, firmness, and support factor are different

These three terms answer different questions.

The PFA explicitly says firmness is independent of density. Formulators can make a soft high-density foam or a firm lower-density foam. That is why “high-density support foam” is incomplete marketing language unless the brand provides the actual density, foam family, and relevant firmness specification.

How density is calculated

For a uniform foam sample:

Density = mass ÷ volume

In U.S. bedding specifications, density is often stated in pounds per cubic foot (lb/ft³). Metric specifications use kilograms per cubic meter (kg/m³). One lb/ft³ is approximately 16.02 kg/m³.

Example: a uniform sample measuring 12 × 12 × 12 inches has a volume of one cubic foot. If it weighs 3 pounds, its apparent density is 3 lb/ft³.

That simple calculation becomes unreliable when applied to a finished mattress. The shipping weight includes multiple foams, fabric, fire-barrier material, fiber fill, adhesives, zippers, handles, coils, border foam, and packaging. Dividing total mattress weight by total volume produces a blended construction number, not the density of the comfort layer.

Polymer density versus filled density

The PFA advises using polymer density for specification purposes—the foam chemistry without fillers or reinforcements included. Fillers can add mass without adding the same polymer structure. That means two foams with the same apparent density can perform differently when their formulations differ.

This does not justify calling every heavy foam “chalk-filled” or every undisclosed formulation deceptive. It means the better technical question is:

Is the stated value apparent density or polymer density, and does the formulation use fillers or reinforcements that materially affect the value?

If support cannot answer, treat the number as less comparable rather than inventing a composition.

What density can suggest about durability

The PFA says density affects durability and support and that, typically, higher polymer-density foam retains its original properties better. That is a useful directional relationship within comparable foams.

It does not establish a universal cutoff because durability also depends on:

• foam family and chemical formulation;
• whether the density value includes fillers;
• layer thickness and location;
• firmness and support factor;
• cell structure and airflow design;
• fatigue, tensile, tear, and compression-set performance;
• adhesive and laminate behavior;
• coil or base support beneath the foam;
• sleeper weight distribution and movement;
• foundation compliance;
• temperature, humidity, spills, and maintenance.

A thin low-density quilting layer can soften without destroying the support core. A thick comfort layer has more influence on body impressions. A high-density layer can still feel wrong, sleep warm for a particular person, or fail because another component fails first.

Why exact lifespan tables are misleading

Older versions of this guide mapped density bands to promises such as “one to three years,” “eight to ten years,” or “twelve-plus years.” Those claims looked precise but ignored material family, thickness, load, formulation, test results, environment, and the rest of the mattress.

Laboratory fatigue testing can compare property loss after defined cycles, but converting those cycles into calendar years requires assumptions about real-world loads and use. A warranty impression threshold is also not a predicted lifespan; it is a contract definition for one type of potential defect.

Use density to narrow uncertainty, not to manufacture a countdown clock.

Memory foam, conventional polyfoam, HR foam, and latex

Viscoelastic memory foam

Memory foam is a type of flexible polyurethane foam formulated for time- and temperature-dependent response. Density does not by itself tell you response speed, softness, temperature feel, or pressure relief. Ask for density, thickness, IFD conditions, and whether the brand reports recovery or fatigue performance.

Conventional polyfoam

Conventional flexible polyurethane foam can be made across a wide range of densities and firmness levels. It may appear in quilting, comfort, transition, edge, or support layers. Location matters: a specification that is adequate for a thin quilt layer may be a different durability decision when used as the entire support core.

High-resilience foam

“HR” should refer to a performance category, not merely a premium adjective. PFA materials connect high-resilience foam with defined performance characteristics, including support behavior. Ask whether HR is a tested classification and request density, IFD, and support factor rather than trusting the letters alone.

Latex foam

Latex foam has different chemistry and processing from flexible polyurethane foam. Its density values should not be placed into a memory-foam quality table. Latex is often specified by firmness, process, blend, and certifications in addition to density. Compare Dunlop with Dunlop and Talalay with Talalay under documented conditions.

Firmness and IFD: the missing half of the conversation

PFA describes firmness through Indentation Force Deflection: the force required to indent a foam sample by a stated percentage of its original height. Test conditions matter, including specimen dimensions, conditioning, indentation percentage, and procedure.

That is why a seller saying “30 ILD” without a method is less useful than it appears. Ask:

• Was the value measured as IFD or ILD under which standard?
• At what indentation percentage?
• On what sample thickness and after what conditioning?
• Is it a target, a typical value, or a guaranteed range?

For the finished mattress, quilting, cover tension, layer thickness, zoning, and the layers below change perceived firmness. A foam-sample value is not a universal 1–10 mattress score.

Support factor: how the foam pushes back deeper

Support factor, also called compression modulus, compares the force at deeper compression with the force at shallower compression. A foam can feel soft at first contact while building resistance as the sleeper sinks farther. That behavior helps explain why two foams with similar initial firmness can feel different under the pelvis or when sitting at the edge.

Support factor is valuable, but it still describes a foam specimen rather than an entire layered mattress. Coils, transition layers, zoning, and thickness affect the final response.

Heat: density is not a thermostat

It is tempting to state that higher density always sleeps hotter because there is more material and potentially less airflow. Real mattress temperature is more complicated. Cell openness, viscoelastic response, layer thickness, perforation, convoluting, phase-change materials, cover, protector, sheets, room climate, body contact area, and coils all influence heat and moisture.

Do not use density as a direct temperature score. If heat is a priority, compare construction and trial performance with our hot-sleeper mattress guide.

Motion isolation: formulation and construction matter

Viscoelastic foams often damp motion well, but density alone does not determine motion isolation. Layer thickness, response speed, firmness, coil design, edge reinforcement, bed size, and foundation all change partner disturbance. A higher-density responsive polyfoam may transmit more movement than a lower-density slow viscoelastic foam.

Use density to understand material quantity, not to predict every performance category.

Layer location changes the meaning of the number

The same reported density can carry different practical importance depending on where and how much of the foam is used.

This is why a brand advertising one “high-density base” number does not describe the comfort layers most likely to shape early softening. Conversely, a lower-density thin quilt layer should not be treated as if the entire mattress used that material.

Nominal values, tolerances, and model changes

Foam production has specification ranges. A technical answer should clarify whether a value is a nominal target, minimum, or allowable range. Ask whether suppliers or formulations can change while the model name remains the same and whether all sizes use the same layer stack.

Model updates also complicate old reviews. A density reported for a 2022 version may not apply to a 2026 mattress with the same marketing name. Record the model generation, manufacturing date when available, and source date. Treat unsourced forum numbers as leads, not verified specifications.

For meaningful comparison, both brands should report the same kind of value. Apparent density from one supplier and polymer density from another are not automatically equivalent. Likewise, a nominal IFD without test conditions should not be ranked against a laboratory range with full conditions as if their precision were identical.

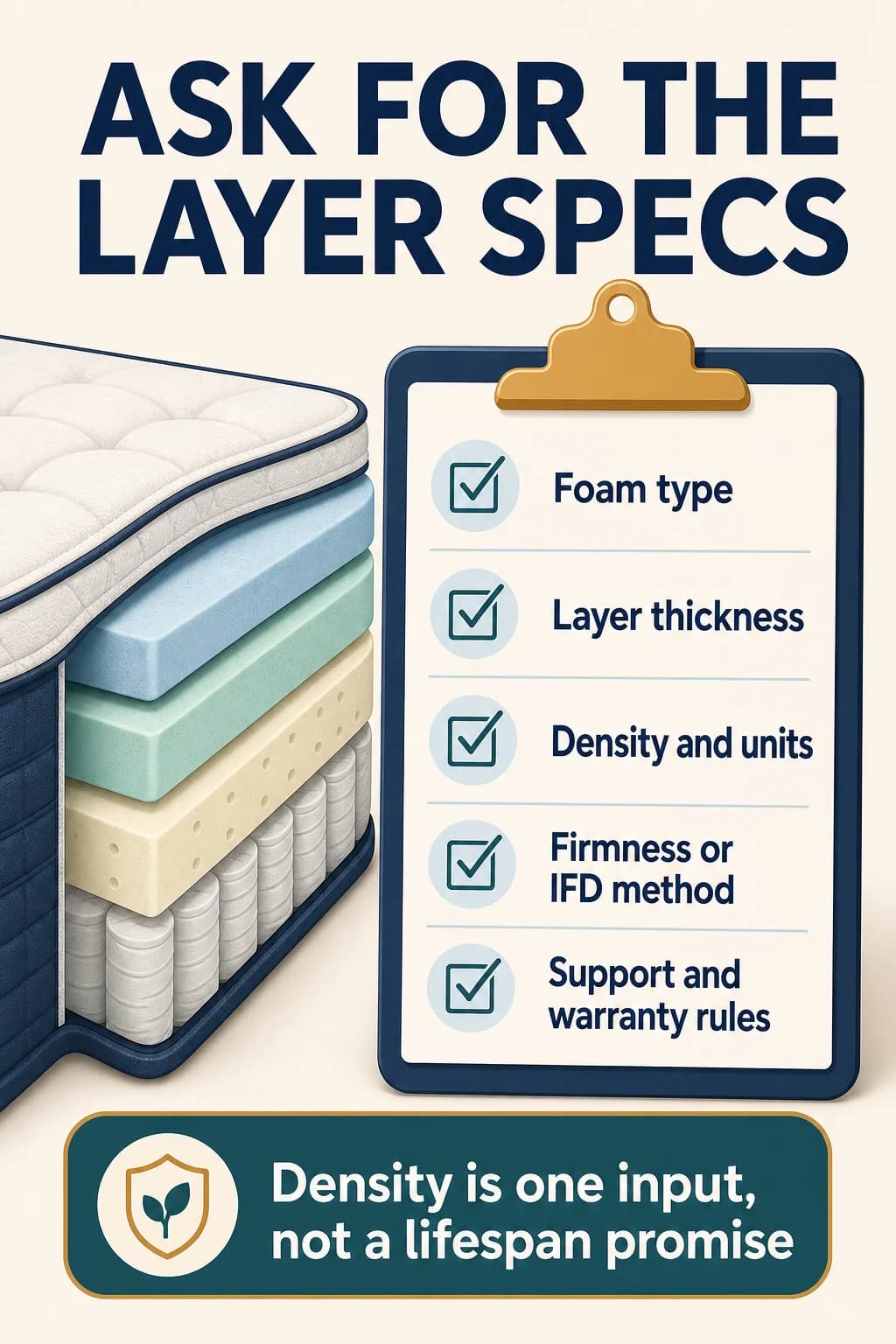

The layer-spec request that gets useful answers

Send the brand this message:

Please provide the foam family, thickness, density with units, and firmness or IFD test method for each polyurethane-foam layer in [exact model and size]. If available, please also provide polymer density, support factor, fatigue or compression-set data, filler disclosure, and the acceptable specification range rather than only a nominal target.

A useful answer might include a table. A partial answer still reduces uncertainty. A refusal is not proof of poor quality, but it prevents specification-based comparison and should lower your confidence accordingly.

How to compare two mattresses

1. Match material families; do not compare latex density directly with memory-foam density.
2. Map every layer by thickness and location.
3. Confirm units and whether density is apparent or polymer density.
4. Compare firmness and support factor separately.
5. Look for fatigue, compression-set, and recovery information if provided.
6. Add coils, edge construction, cover, fire barrier, and foundation rules.
7. Check whether published support ranges fit both sleepers.
8. Read the trial and warranty without treating either as performance proof.

For higher body weights, the importance of layer thickness, responsiveness, and support-core construction increases. Our mattress guide for people over 230 pounds covers those complete-build decisions.

What CertiPUR-US does—and does not—mean

CertiPUR-US says certified flexible polyurethane foam is tested for defined content, emissions, and durability criteria by independent accredited laboratories. Its rules also state that only the flexible polyurethane foam is certified, not the finished mattress.

The certification is useful evidence about the foam within its scope. It does not disclose layer density, guarantee a particular feel or lifespan, certify latex or textiles, identify the fire barrier, or replace model-specific technical data.

Final verdict

Density is a legitimate and useful material specification. It becomes misleading only when a seller or reviewer turns it into a firmness score, a temperature verdict, or an exact number of years.

Use it as one part of a complete specification: foam family, thickness, density and units, firmness method, support factor, fatigue behavior, location in the mattress, foundation, body-weight fit, trial, and warranty. That approach is less dramatic than a “magic minimum,” but it is far more defensible.
